The Library - ProRes 422 HQ Export Guide - Adobe Media Encoder
This document outlines the required audio, video, and structural specifications of materials submitted to the Clearcast Library. It contains a breakdown of all the elements required for a material to pass QC and documents what specifications are tested at each QC step.
This document is intended as a guide only for the export of content from Media Encoder. Suppliers should perform their own encoding tests and QC to verify final settings achieve the required specification and level of quality.
Please find below the layout The Library will accept, along with specs.

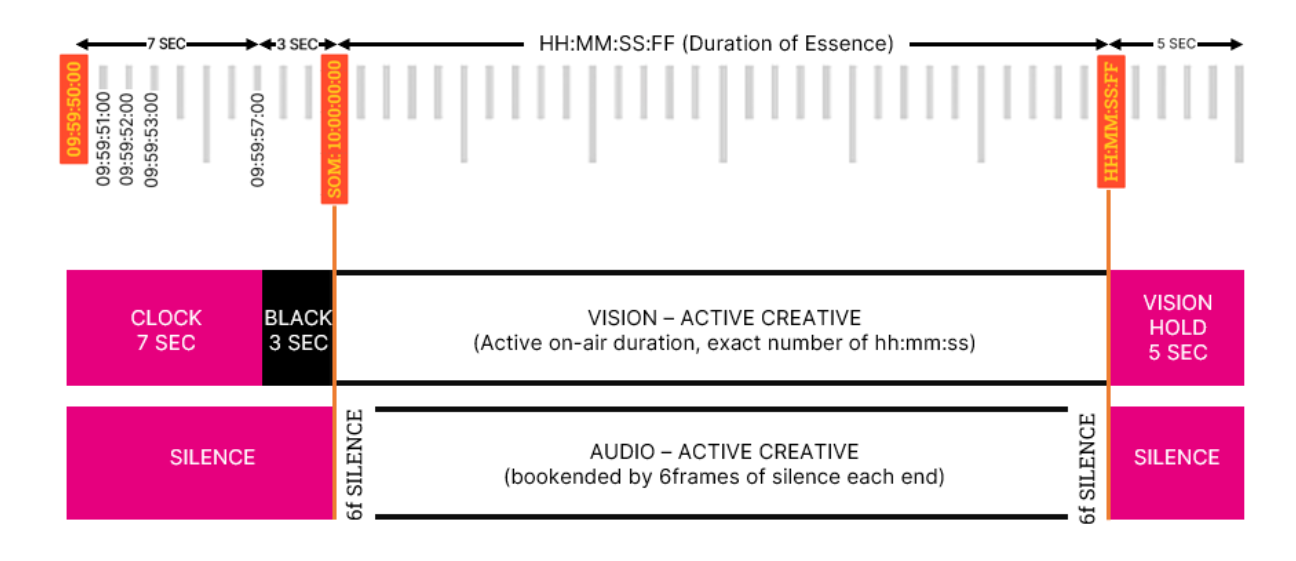

With a five-second freeze:

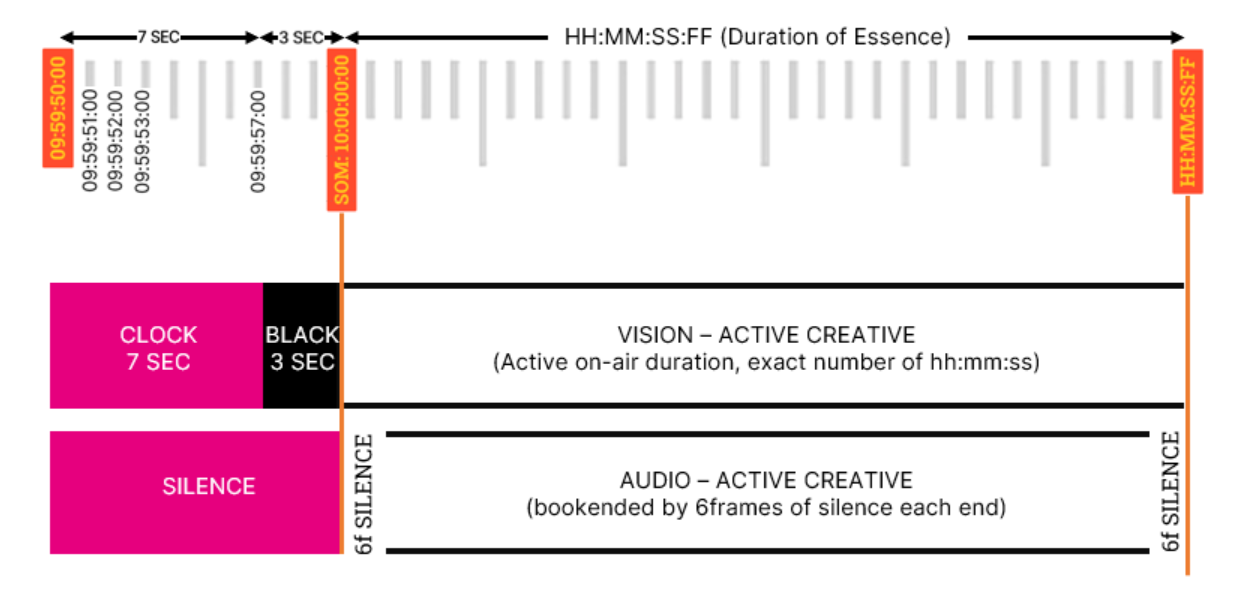

With a zero-second freeze:

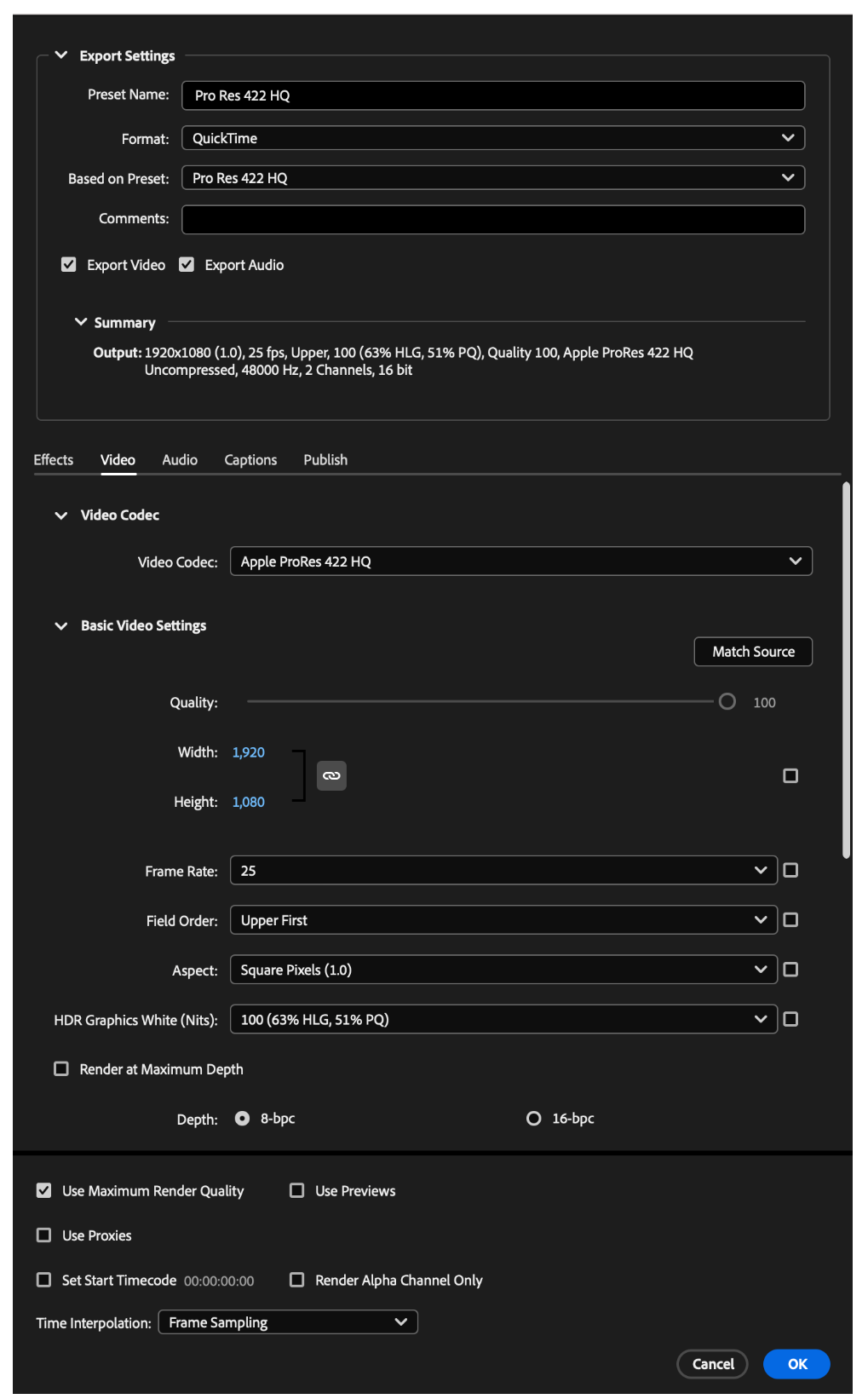

Video
Colour space: ITU-R BT.709
RGB Gamut: EBU R103
PSE Check: ITU-R BT1702
Audio
Integrated Loudness: EBU R128 -23dbLUFS
Peak Level: -1dbTP
Phase Coherence: Mean Phase must not be below -0.95
Container
Format: MXF or MOV
Format Profile: OP-1a or QuickTime
Video
Format: AVC
Format Profile: High 4:2:2 Intra or 4:2:2 HD
Bit Rate: 114 Mbit/s
Frame Size: 1920 x 1080
Aspect Ratio: 16:9Frame Rate: 25 FPS
Colour Bit Depth: 10 Bit
Scan Type: Interlaced

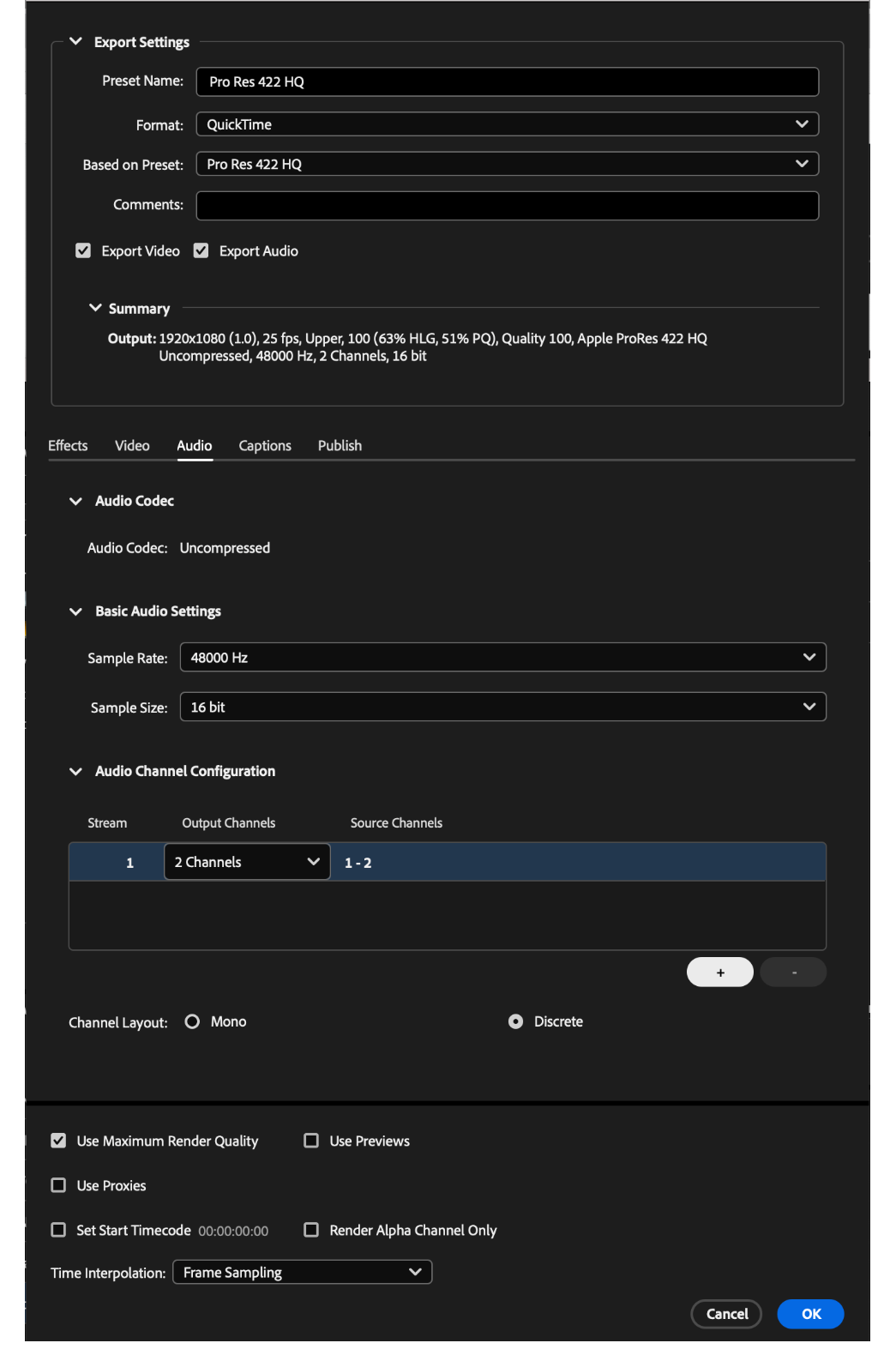

Audio
Format: PCM
Sampling Rate: 48Khz
Bit Depth: 16 Bit (Minimum)
DROPLET FILE BELOW FOR YOUR USE:
